IoT Solar Torque Valve

Heavy-Duty Solar Intelligence for Large-Scale Flow Control.

The QT-02F Series Solar Torque Valve is a high-performance, autonomous actuator designed for large-diameter pipelines ranging from DN32 to DN300. Engineered for environments where power is inaccessible, it features a dismountable solar panel and military-grade battery. Whether controlling ball or butterfly valves, the QT-02F delivers up to 300N.m of torque, providing reliable remote operation via 4G, LoRaWAN, or RS485. With an IP67 rating and optional high-precision flow or pressure sensors, it is the ultimate solution for agricultural irrigation, water conservancy, and industrial pipeline management.

  1. With or Without Ultrasonic flow meter
  2. Water consumption or pressure control
  3. Water Flow Control
  4. Water shortage warning



  • Model – IoTX-QT-02F
  • Power supply – Lithium battery + solar energy/External power supply
  • Communication protocol – 4G/LoRawan/RS485
  • Protection level – IP67
  • Valve size – DN50, DN100, DN150 & DN 300
  • Flow meter – With/ Or Without Ultrasonic flow meter  (optional)
  • Ambient temperature – -40℃~80℃
  • Water temperature – 0~70℃

Download EXG-300 Datasheet

This product is currently out of stock and unavailable.

SKU: IoTX-QT-01EF Category: Tags: ,

Description

Industrial Power Meets Renewable Autonomy

The QT-02F series is built to handle the heavy-duty requirements of modern infrastructure. Unlike standard irrigation valves, this series provides the high torque necessary to operate larger butterfly and ball valves in complex piping systems. By integrating a dismountable high-efficiency solar panel with a military-grade battery, the QT-02F operates entirely off-grid, eliminating the massive costs associated with remote power cabling and trenching.

Versatile Connectivity & Multi-Platform Control

Stay in control of your infrastructure from anywhere in the world. The QT-02F supports a wide array of communication protocols, including 4G, LoRaWAN, QOTA, and RS485. This allows for seamless integration into:

  • Remote Management: Control via Mobile App, Tablet, or Web Dashboard.

  • Local Automation: Set up a localized wireless LAN for offline site control.

  • Smart Feedback: Optional configurations with pressure sensors or ultrasonic flow meters provide real-time data for leak detection and consumption monitoring.

Engineered for Extreme Environments

Designed to survive the harshest South African conditions, these valves operate in ambient temperatures from -40°C to 80°C. The IP67-rated housing ensures total protection against dust and water submersion, making it suitable for open-field agriculture, municipal waterworks, and industrial gardening.

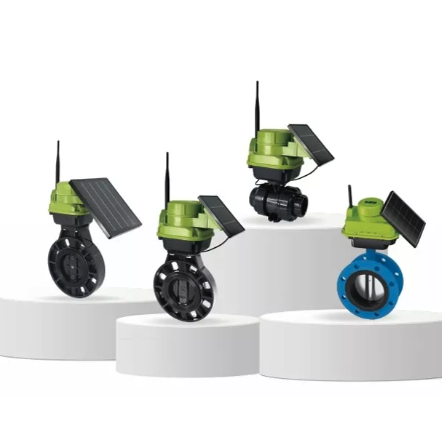

Popular Models & Specifications

Model Torque Max Valve Size Communication
QT-02F05 50N.m DN50 4G / LoRaWAN / QOTA

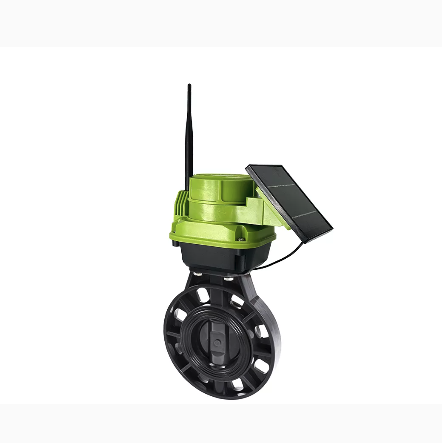

QT-02F08 80N.m DN100 4G / LoRaWAN / QOTA

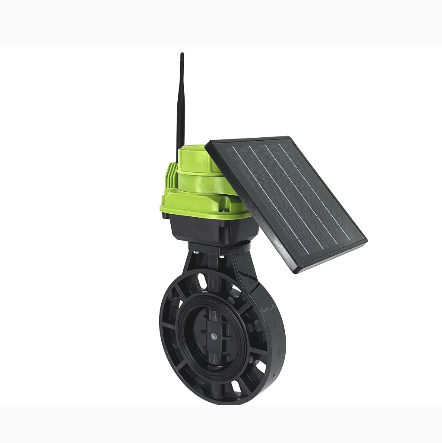

QT-02F12 120N.m DN150 4G / LoRaWAN / QOTA

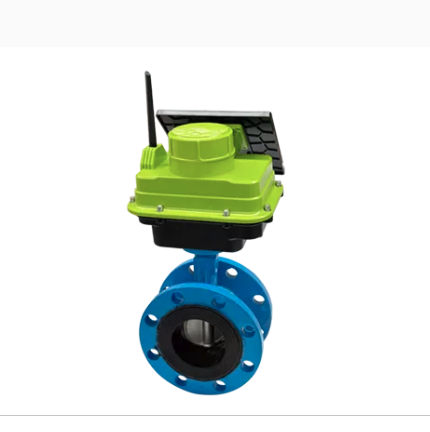

QT-02F30 300N.m DN300 4G / LoRaWAN / QOTA

  • Protection Grade: IP67

  • Fluid Temperature: 0~70°C

  • Configuration Options: Integrated flow meter or pressure sensor.

Upgrade your pipeline control with the QT-02F Series. Contact IoTXperts for a tailored solution for your DN32 to DN300 requirements.

SummaryTechnical Specifications:

  • Model: IoTX-QT-02F

  • Communication: LoRaWAN / 4G /RS485

  • Power: Solar Energy + Lithium Battery

  • Valve Size: DN25

  • Protection: IP67 Waterproof

  • Temperature Range: -20℃ to 70℃ (Ambient); 0℃ to 70℃ (Water)





Additional information

Valve Type

Ball Valve, Butterfly Valve, Metal Butterfly valve, Metal Flange Butterfly
Diameter

DN25 30mm pipe, DN25 32mm pipe, DN32 40mm pipe, DN40 50mm pipe, DN50 63mm pipe, DN65 75mm pipe, DN80 90mm pipe, DN100 110mm pipe, DN125 140mm pipe, DN150 168mm pipe, DN200 219mm pipe, DN250 273mm pipe, DN300 323mm pipe
